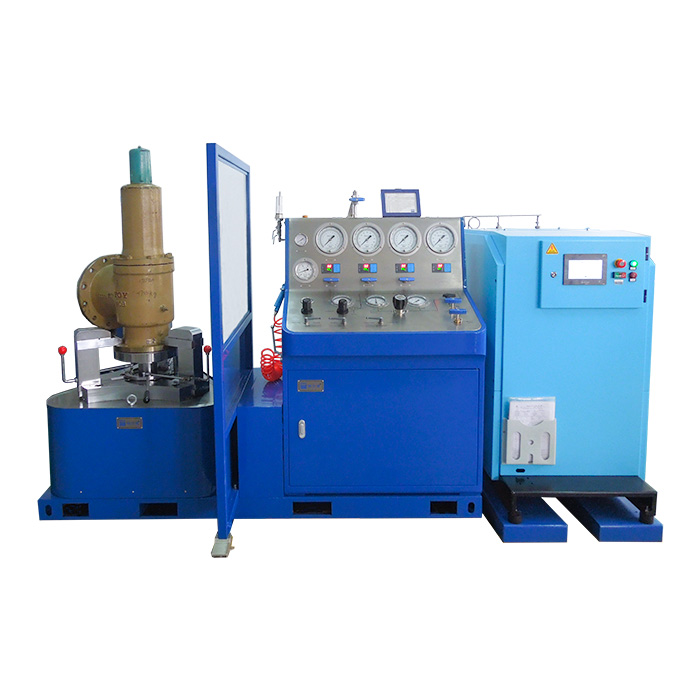

Gas and liquid test bench with HP air compressor
1.Test medium: nitrogen, compressed air, water;
2.Test pressure: ＜320 bar(liquid & air);
3.Test range: DN15-250;
4.Clamping force: ＜30T;
5.Power supply: AC380V/50Hz,5kw;
6.Dimensions and weight:
control console: L2100*W1375*H1704,915kg;
high pressure compressor: L940*W1500*H1518,442kg.
- Parameters
1.Test medium: nitrogen, compressed air, water;
2.Test pressure: ＜320 bar(liquid & air);
3.Test range: DN15-250;
4.Clamping force: ＜30T;
5.Power supply: AC380V/50Hz,5kw;
6.Dimensions and weight:
control console: L2100*W1375*H1704,915kg;
high pressure compressor: L940*W1500*H1518,442kg.
▍Applications
Gas and liquid test bench with HP air compressor TPU-3100-LSHAC
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Skid-mounted integral with fully functional;
2.With high pressure air compressor;
3.A number of security measures to ensure safety;
4.Hydraulic automatic clamping, with pre-clamping, accurate clamping, fast clamping and other clamping methods, a single person can quickly complete the test;
5.Rigid structure, reasonable test circuit, reliable components, high precision, long service life.
▍Parameter
1.Test medium: nitrogen, compressed air, water;
2.Test pressure: ＜320 bar(liquid & air);
3.Test range: DN15-250;
4.Clamping force: ＜30T;
5.Power supply: AC380V/50Hz,5kw;
6.Dimensions and weight:
control console: L2100*W1375*H1704,915kg;
high pressure compressor: L940*W1500*H1518,442kg.
