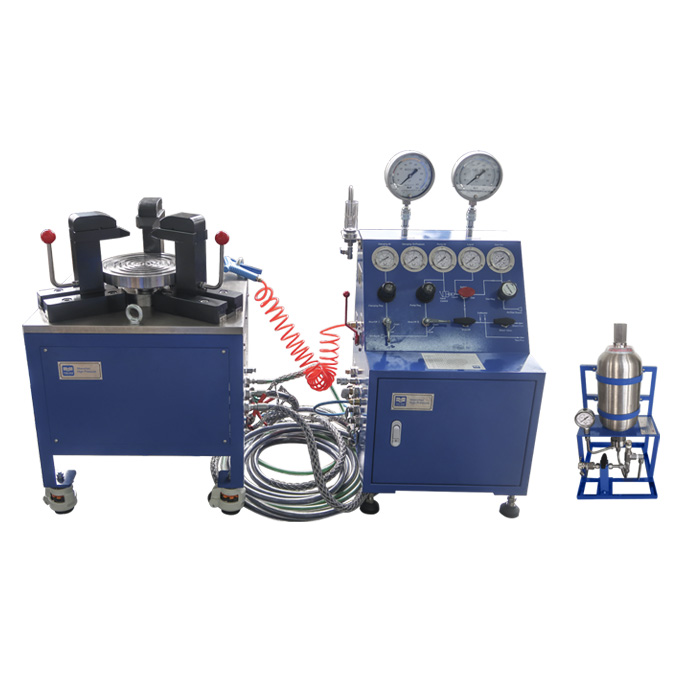

Small size, middle & low pressure, gas and liquid test bench
1.Test medium: air, water;
2.Test pressure: ＜150 bar(air), ＜200 bar(liqiud);
3.Test range: DN15-200;
4.Clamping force: 20T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L560*W500*H1067(mm) ;71kg;
clamping console: L600*W550*H795(mm) ; 188kg.
- Parameters
1.Test medium: air, water;
2.Test pressure: ＜150 bar(air), ＜200 bar(liqiud);
3.Test range: DN15-200;
4.Clamping force: 20T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L560*W500*H1067(mm) ;71kg;
clamping console: L600*W550*H795(mm) ; 188kg.
▍Applications
Small size, middle & low pressure, gas and liquid test bench TPU-3100-LY
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Separation of clamping console and control console, easy to move with small size;
2.Hydraulic clamping, great clamping force, wide application;
3.Using high quality components which are stable and reliable.
▍Parameter
1.Test medium: air, water;
2.Test pressure: ＜150 bar(air), ＜200 bar(liqiud);
3.Test range: DN15-200;
4.Clamping force: 20T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L560*W500*H1067(mm) ;71kg;
clamping console: L600*W550*H795(mm) ; 188kg.
