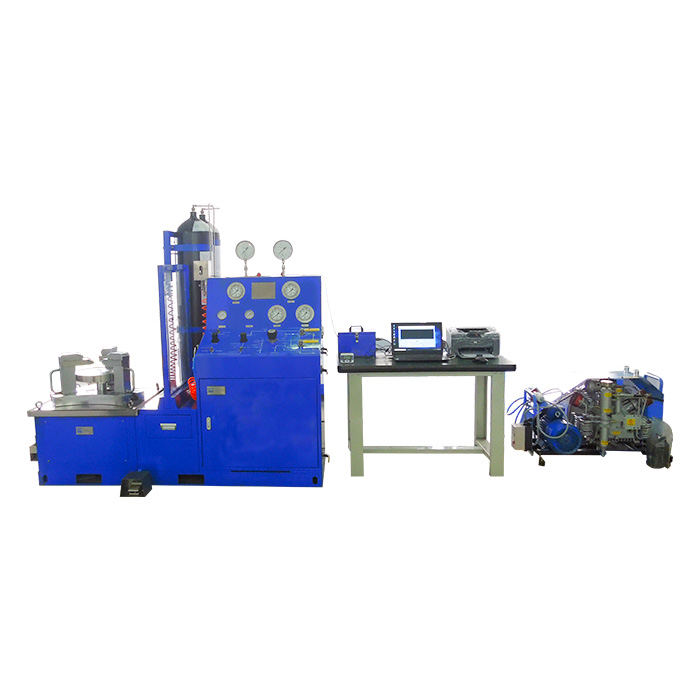

High flow gas and liquid test bench
1.Test medium: air, nitrogen, water;
2.Test pressure: ＜400 bar (air),＜400 bar (liquid);
3.Test range: DN15-300;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar, AC220V/50Hz
6.Dimensions and weight:
control: L770*W770*H1670(mm), 159kg;
clamping: L896*W819*H856(mm), 417.5kg;
potable recorder: 280*225*170(mm);
7.More: Hydraulic clamping.
- Parameters
1.Test medium: air, nitrogen, water;
2.Test pressure: ＜400 bar (air),＜400 bar (liquid);
3.Test range: DN15-300;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar, AC220V/50Hz
6.Dimensions and weight:
control: L770*W770*H1670(mm), 159kg;
clamping: L896*W819*H856(mm), 417.5kg;
potable recorder: 280*225*170(mm);
7.More: Hydraulic clamping.
▍Applications
High flow gas and liquid test bench TPU-3100-XL
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.There are 2 large capacity cylinders for gas and liquid;
2.Integrated on a skid panel;
3.High pressure output pipeline is 1 inch;
4.Hydraulic automatic clamping, with pre-clamping, accurate clamping, fast clamping and other clamping methods, a single person can quickly complete the test.
▍Parameter
1.Test medium: nitrogen、compressed air, water;
2.Test pressure: 0-310 bar;
3.Test range: DN15-300;
4.Clamping force: ＜40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L840*W750*H1150(mm);
clamping console: L783*W783*H898(mm);
7.More: Hydraulic clamping, with pre-clamping, high pressure cylinders, AT-31computer recorder.
