- Parameters
1.Test medium: Most non-corrosive liquid like pure water and oil, etc.;
2.Test pressure: Max. Output liquid pressure:1103 bar;
3.Power supply: 1.4Nm3/Min@6.9 bar,AC220V/50Hz;
4.Dimensions and weight: Anti-explosion test box: L2000*W800*H300(mm).
▍Applications

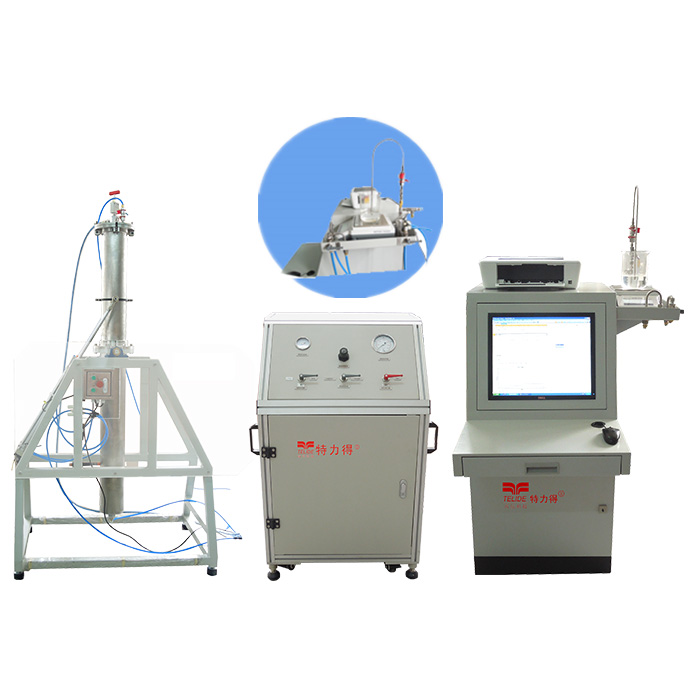

Tilting water jacket cylinder test bench HPU-1301V
Use air as the driving source, and air driven pump as pressure source. The output liquid pressure and driving air pressure are proportional. By adjusting the driving air pressure, it can achieve the corresponding output liquid pressure. The air driven pump slows to a stop, and the output liquid pressure is stable at the preset pressure when the output liquid pressure balances to the driving air pressure . Through controlling the air input, it can control the liquid flow, so that to control the pressurization rate.
▍Main feature
1.Water jacket method. Water jacket can turn over automatically;
2.Manual control and program control optional; Automatically calculate deformation;
3.Medium: oil or water;
4.Quick charging and cleaning up;
5.Different water jackets for different specifications of cylinder. High work efficiency and test precision.
▍Parameter
1.Test medium: Most non-corrosive liquid like pure water and oil, etc.;
2.Test pressure: Max. Output liquid pressure:1103 bar;
3.Power supply: 1.4Nm3/Min@6.9 bar,AC220V/50Hz;
4.Dimensions and weight: Anti-explosion test box: L2000*W800*H300(mm).
