- Parameters
1.Test medium:nitrogen、compressed air;
2.Test pressure:0-150 bar;
3.Test range:DN15-150,1/2'～6';
4.Clamping force:6T, manual operation;
5.Power supply:nitrogen bottle;
6.Dimensions and weight:
L760*W460*H320（mm）,38kg.
▍Applications

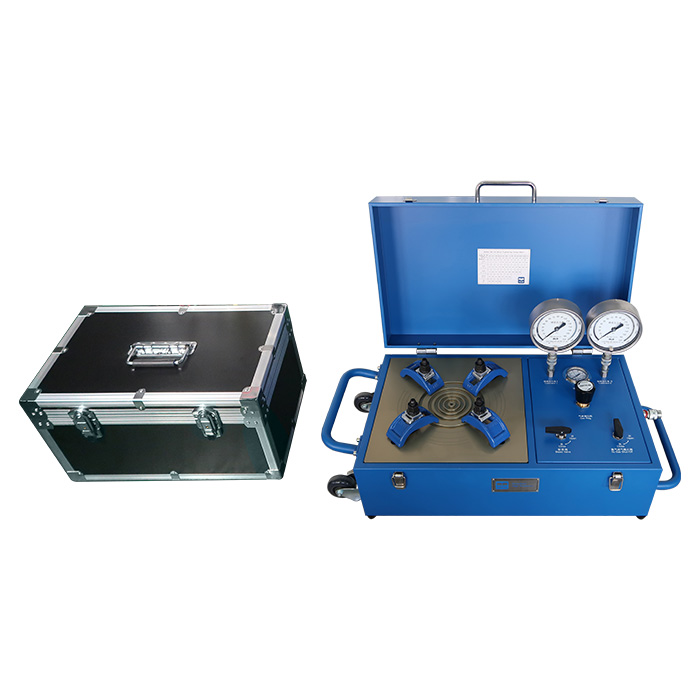

Portable integrated test bench PTP-1
1.Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
2.Suitable for Special Equipment Inspection Institute, petrochemical industry, oil and gas field, metallurgy industry, power plant, aviation industry and nuclear power industry, especially for offshore oil platform.
▍Main feature
1.Mainly composed of regulators and manual clamping. Integrated in a portable case with wheels and handle. Easy to carry with small size and light weight;
2.The outlet pressure(0-150 bar) is adjustable steplessly. Test with high pressure nitrogen bottles compressed air;
3.Regulators and shut-off valve are panel mounted with a pressure gauge(160 bar) which precision is 0.4%.
▍Parameter
1.Test medium:nitrogen、compressed air;
2.Test pressure:0-150 bar;
3.Test range:DN15-150,1/2'～6';
4.Clamping force:6T, manual operation;
5.Power supply:nitrogen bottle;
6.Dimensions and weight:
L760*W460*H320（mm）,38kg.
