- Parameters
1.Test medium: water, nireogen;
2.Test pressure: 15 MPa(air)，40MPa(DN15-40)(liquid)，24MPa(DN50-65)(liquid);
3.Test range: DN15-65;
4.Clamping force: 10T;
5.Power supply: manual, nitrogen as precharge air;
6.Dimensions and weight: L966*W526*H325(mm), 47.5Kg.
▍Applications

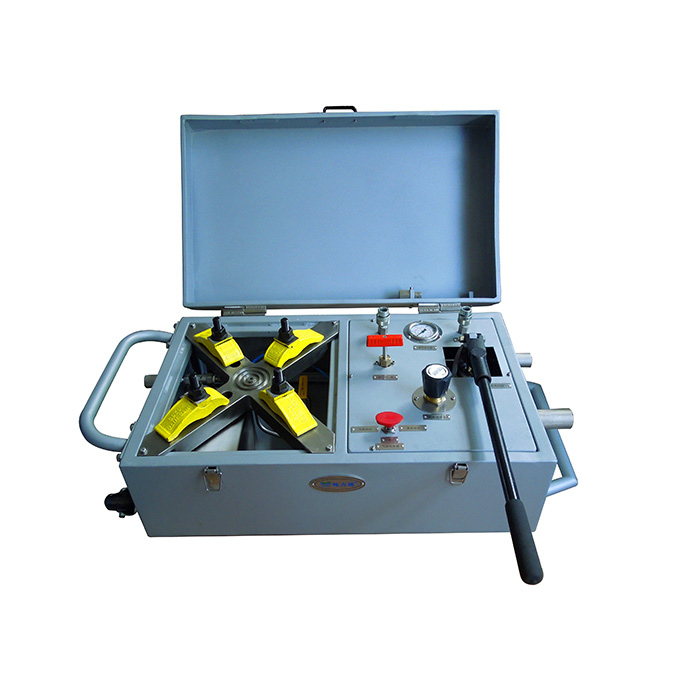

Portable gas and liquid test bench PTP-1L
1.Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
2.Equipped with thread-flange transition plate and conventional inch thread conversion connector which can test threaded safety valve, as well as threaded type and flange type valves.
▍Main feature
1.Gas test is with high pressure nitrogen gas or compressed air, and adjust the test pressure by pressure regulator accurately.
2.Liquid test fluid source has two options: external tap water and own liquid tank of equipment.
3.Use manual pump pressurization and no pressure regulating valve needed.
4.Achieve test transformation between gas and liquid by change-over valve.
5.All parts are installed in a portable cabinet with wheels which is easy to carry.
▍Parameter
1.Test medium: water, nireogen;
2.Test pressure: 15 MPa(air)，40MPa(DN15-40)(liquid)，24MPa(DN50-65)(liquid);
3.Test range: DN15-65;
4.Clamping force: 10T;
5.Power supply: manual, nitrogen as precharge air;
6.Dimensions and weight: L966*W526*H325(mm), 47.5Kg.
