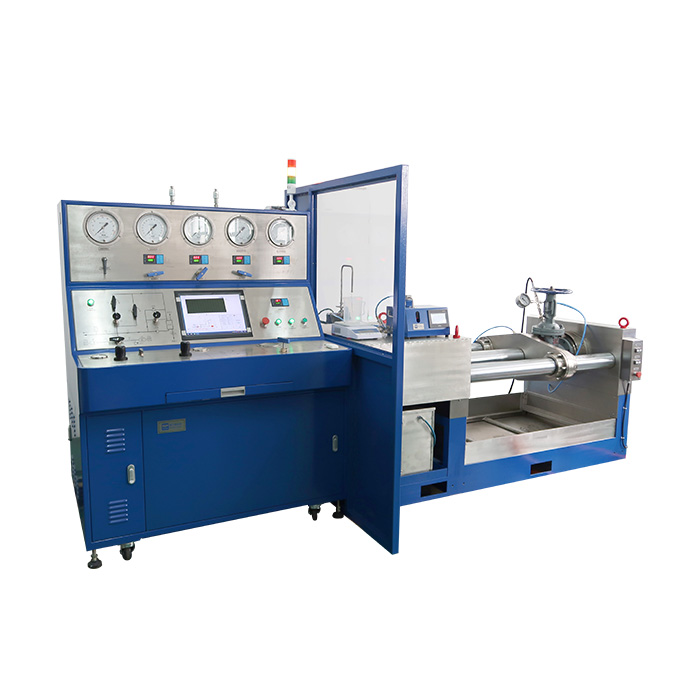

Universal valve test bench TC-10-1
1. Operating Environment: Temperature: 0–50°C; Relative Humidity: 50–95%; Pressure: Standard atmospheric pressure.
2. Standards & Norms: ANSI B16.104, GB/T 13927-2008, etc.
3. Test Objects: Flanged, threaded, or welded valves such as globe valves, gate valves, ball valves, etc.
4. Test Functions: Valve seat tightness and strength tests.
5. Valve Range: DN15–DN250.
6. Test Medium: Water, compressed air.
7. Test Pressure: Water: 0–300 bar; Air: 0–6.9 bar.
8. Clamping Force: 60 tons, stepless adjustable with automatic proportional precision clamping.
- Parameters
1. Operating Environment: Temperature: 0–50°C; Relative Humidity: 50–95%; Pressure: Standard atmospheric pressure.
2. Standards & Norms: ANSI B16.104, GB/T 13927-2008, etc.
3. Test Objects: Flanged, threaded, or welded valves such as globe valves, gate valves, ball valves, etc.
4. Test Functions: Valve seat tightness and strength tests.
5. Valve Range: DN15–DN250.
6. Test Medium: Water, compressed air.
7. Test Pressure: Water: 0–300 bar; Air: 0–6.9 bar.
8. Clamping Force: 60 tons, stepless adjustable with automatic proportional precision clamping.
▍Applications
Universal valve test bench TC-10-1
- This equipment was independently developed by Telide based on customer requirements and complies with relevant national standards.
- The equipment consists of three main parts: a control console, a clamping console, and a shield. It is used for seat tightness and strength performance tests of high- and medium-pressure gate valves, ball valves, globe valves, and other valves with straight-through flanged or welded structures. With nearly 20 years of experience in designing and manufacturing valve test benches, Telide uses top-quality components, advanced system design, reasonable mechanical structures, and specialized testing software to ensure the machine's performance meets and exceeds customer expectations.
▍Main feature
Overall Equipment:
- Ergonomically designed for safe and comfortable operation.
- High efficiency, enabling quick return on investment and long-term benefits.
- Equipped with clamping self-locking function, a safety shield, and multiple protections such as pressure limiting to ensure personnel safety.
Control Console:
- The pressure gauge can be mounted on the panel or on top, with overpressure protection function.
- Compatible with both liquid and gas test medium.
- Equipped with a digital bubble counter to enhance intelligence.
Clamping Console:
Proprietary proportional hydraulic clamping system ensures precise clamping, avoiding valve deformation caused by excessive clamping force.
▍Parameter
1. Operating Environment: Temperature: 0–50°C; Relative Humidity: 50–95%; Pressure: Standard atmospheric pressure.
2. Standards & Norms: ANSI B16.104, GB/T 13927-2008, etc.
3. Test Objects: Flanged, threaded, or welded valves such as globe valves, gate valves, ball valves, etc.
4. Test Functions: Valve seat tightness and strength tests.
5. Valve Range: DN15–DN250.
6. Test Medium: Water, compressed air.
7. Test Pressure: Water: 0–300 bar; Air: 0–6.9 bar.
8. Clamping Force: 60 tons, stepless adjustable with automatic proportional precision clamping.
