- Parameters
1.Test medium: water, oil;
2.Test pressure:
Max. output pressure of plunger hand pump: 400MPa;
Max. output pressure of hand filling pump: 46MPa;
3.Dimensions and weight: L1480*W600*H815(mm), 100kg.
▍Applications

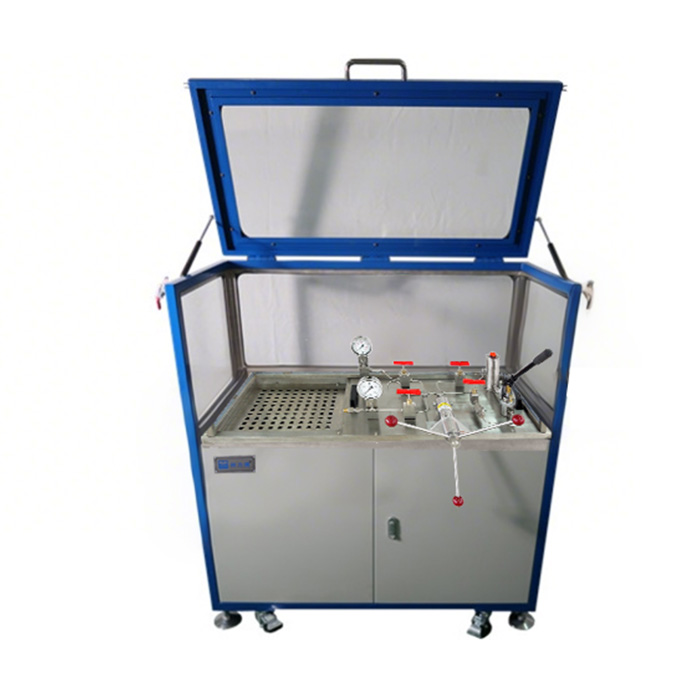

Ultrahigh pressure manual pump system (vertical) TNV-1100-4000
Especially fit for the pressure test to hoses, pipes, valves, fittings and other hydraulic vessels and products. In addition, it is also applied to use as the testing tool for research and inspection department. It can be used for pressure test of ultra-high pressure parts, and can be used for ultra-high pressure hydrostatic or burst test of pressure gauges, sensors and other kinds of purposes.
▍Main feature
1.Full manual operation. No need compressed air and electric equipment.
2.Plunger hand pump. Achieving required pressure easily by fine tuning 3 long poles. Max. output pressure 200MPa.
3.Non-rotating plunger for longer seal life.
4.Stainless steel construction. explosion-proof, small size and safe and stable.
5.All high pressure components are used foreign brands. Connectors, needle valves and plunger hand pump are used NOVA SWISS brand. Except safety head, rupture disc and high pressure gauge, the remaining components are selected at 60KPSI pressure grade.
▍Parameter
1.Test medium: water, oil;
2.Test pressure:
Max. output pressure of plunger hand pump: 400MPa;
Max. output pressure of hand filling pump: 46MPa;
3.Dimensions and weight: L1480*W600*H815(mm), 100kg.
