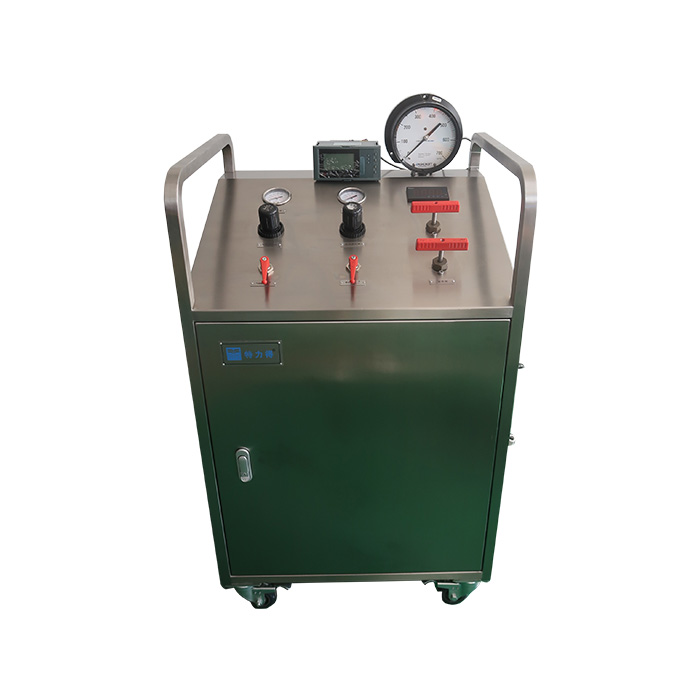

Ultrahigh Pressure liquid test unit HSU-1400-DSXHW-1373
1. Medium: water or hydraulic oil;
2. Pressure: maximum driving air pressure 0.69MPa, output hydraulic pressure 650MPa;
3. Power requirements: clean and dry compressed air, 1.0 standard meters ³ /min@0.69MPa, air supply pressure less than 1MPa;
4. External dimensions and weight: length 600 * width 550 * height 1120 (mm), weight about 100kg;
5. Others: fully enclosed carbon steel frame, etc.
- Parameters
1. Medium: water or hydraulic oil;
2. Pressure: maximum driving air pressure 0.69MPa, output hydraulic pressure 650MPa;
3. Power requirements: clean and dry compressed air, 1.0 standard meters ³ /min@0.69MPa, air supply pressure less than 1MPa;
4. External dimensions and weight: length 600 * width 550 * height 1120 (mm), weight about 100kg;
5. Others: fully enclosed carbon steel frame, etc.
▍Applications
Suitable for pressure resistance and burst testing of pressure equipment and components such as pipe fittings, pipeline components, gas cylinders, etc
▍Main feature
1. Fully enclosed frame unit, components: gas-driven liquid booster pump, air filter, regulator, oil mist, air pressure gauge, gas shut-off valve, muffler, high-pressure needle valve, hydraulic gauge, etc;
2. Compact structure, reasonable layout, easy to operate, with four casters at the bottom, easy to move.
▍Parameter
1. Medium: water or hydraulic oil;
2. Pressure: maximum driving air pressure 0.69MPa, output hydraulic pressure 650MPa;
3. Power requirements: clean and dry compressed air, 1.0 standard meters ³ /min@0.69MPa, air supply pressure less than 1MPa;
4. External dimensions and weight: length 600 * width 550 * height 1120 (mm), weight about 100kg;
5. Others: fully enclosed carbon steel frame, etc.
