- Parameters
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum driven pressure 6.9 bar，output pressure 1637 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L525*W375*H425(mm), 26.5kg.
▍Applications

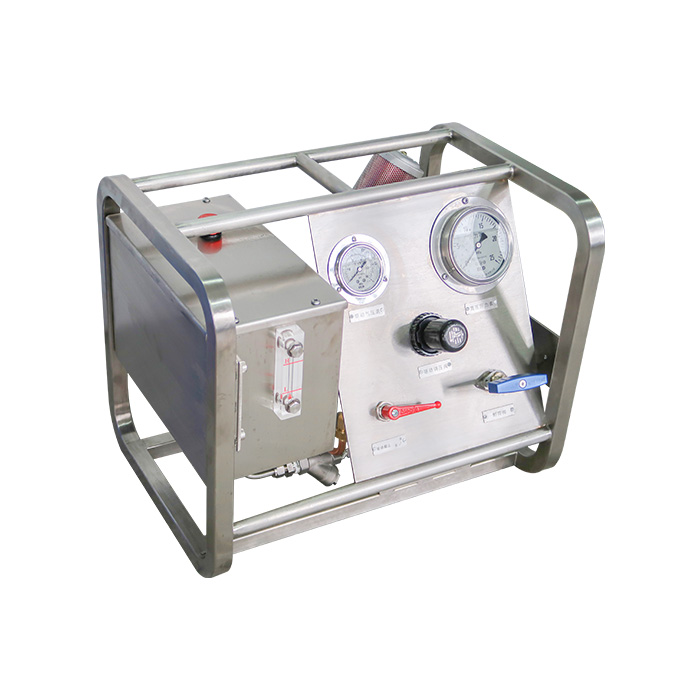

Portable tubular frame power unit with reservoir HPU-1201
Suitable for tool test and pressure test to hoses, pipes, valves, fittings and other hydraulic vessels and products.
▍Main feature
1.Portable unit with sturdy tubular frame.
2.Panel mounted air gauge, 4' high pressure gauge, regulator, air shut-off valve, bleed valve.
3.Three gallon stainless steel reservoir,high pressure output in the top or side plate.
4.Pressure ranges up to 43,500 psi.
5.Available radial precision pressure gauge connector
▍Parameter
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum driven pressure 6.9 bar，output pressure 1637 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L525*W375*H425(mm), 26.5kg.
