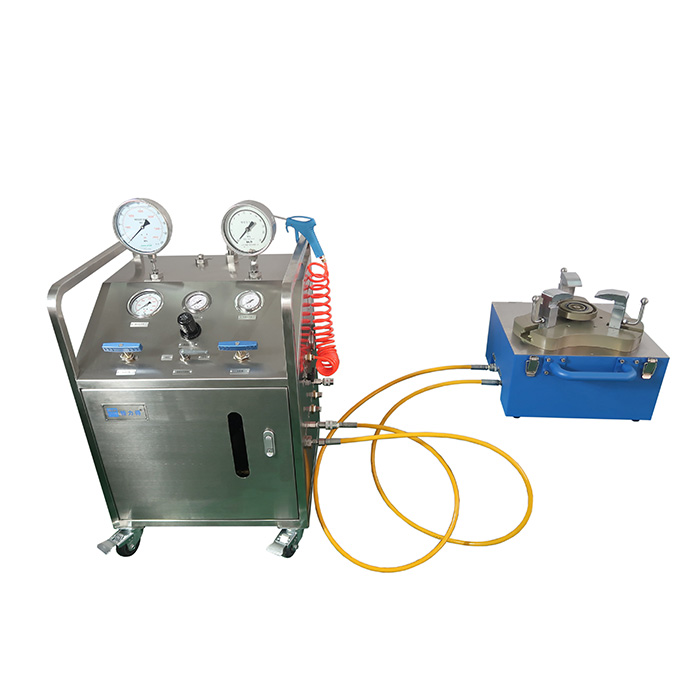

Portable liquid test bench PTP-3A
1. Test medium: clean water;
2. Test pressure: maximum 155MPa;
3. Test diameter: Thread 1/4 '-2', flange DN10-DN50;
4. Power requirements: Clean and dry compressed air, 0.4 standard meters per minute;
5. Overall dimensions and weight:
Console: length 665 * width 560 * height 872 (mm), 88kg;
Clamping table: length 425 * width 473 * height 318 (mm), 33kg;
6. Other: Test diameter DN150 optional.
- Parameters
1. Test medium: clean water;
2. Test pressure: maximum 155MPa;
3. Test diameter: Thread 1/4 '-2', flange DN10-DN50;
4. Power requirements: Clean and dry compressed air, 0.4 standard meters per minute;
5. Overall dimensions and weight:
Console: length 665 * width 560 * height 872 (mm), 88kg;
Clamping table: length 425 * width 473 * height 318 (mm), 33kg;
6. Other: Test diameter DN150 optional.
▍Applications
Portable liquid test bench PTP-3A
Test ultra-high pressure threaded safety valves and low-pressure flange safety valves.
▍Main feature
1. Equipped with air driven booster which can boost pressure quickly, or manual boost slowly;
2. The equipment is lightweight and easy to carry, and the clamping table and testing table can be transported separately;
3. There are multiple threaded valve test ports on the top of the console, and a flange type automatic clamping table is also equipped.
▍Parameter
1. Test medium: clean water;
2. Test pressure: maximum 155MPa;
3. Test diameter: Thread 1/4 '-2', flange DN10-DN50;
4. Power requirements: Clean and dry compressed air, 0.4 standard meters per minute;
5. Overall dimensions and weight:
Console: length 665 * width 560 * height 872 (mm), 88kg;
Clamping table: length 425 * width 473 * height 318 (mm), 33kg;
6. Other: Test diameter DN150 optional.
