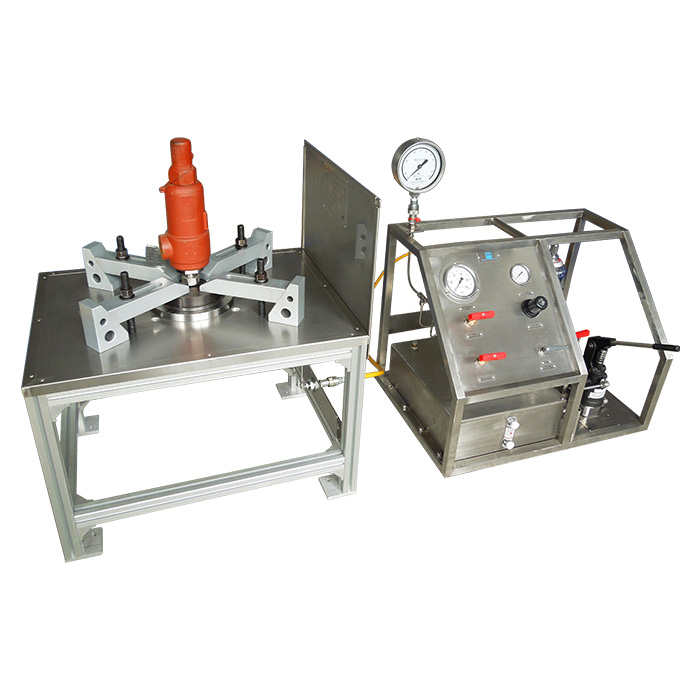

Portable HP liquid test bench
1.Test medium: water and other liquid;
2.Test pressure: ＜680 bar, air-operated ＜6.9 bar;
3.Test range: DN15-150;
4.Clamping force: 8T;
5.Power supply: clean and dry compressed air，0.4Nm3/Min@6.9 bar; manual and air-operated;
6.Dimensions and weight:
control console: L750*W520*H870mm，50kg;
clamping console: L740*W550*H508mm，71kg.
- Parameters
1.Test medium: water and other liquid;
2.Test pressure: ＜680 bar, air-operated ＜6.9 bar;
3.Test range: DN15-150;
4.Clamping force: 8T;
5.Power supply: clean and dry compressed air，0.4Nm3/Min@6.9 bar; manual and air-operated;
6.Dimensions and weight:
control console: L750*W520*H870mm，50kg;
clamping console: L740*W550*H508mm，71kg.
▍Applications
Portable HP liquid test bench PTP-3
1.Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
2.Especially suitable for working environment which often needs mobile test, such as offshore oil platform.
▍Main feature
1.Gas-driven booster pump is from American Sprague Products. With both air and manual operation, it boost pressure fast and retain pressure well. High pressure needle valve is from NOVA SWISS. The bench is durable, safe and reliable with comfort operation.
2.Light weight, portable and convenient. It can raise pressure by air driving or manual pressurization. Clamping bench and test bench can be transported separately.
3.Protection plate designed between clamping bench and test bench to keep safe and reliable.
4.Clamping bench also applies for gas test.
5.Fit for clamping all kinds of special shapes of valves.
▍Parameter
1.Test medium: water and other liquid;
2.Test pressure: ＜680 bar, air-operated ＜6.9 bar;
3.Test range: DN15-150;
4.Clamping force: 8T;
5.Power supply: clean and dry compressed air，0.4Nm3/Min@6.9 bar; manual and air-operated;
6.Dimensions and weight:
control console: L750*W520*H870mm，50kg;
clamping console: L740*W550*H508mm，71kg.
