- Parameters
1.Test medium:nitrogen, compressed air;
2.Test pressure: 0-300, 0-400, 0-680 bar;
3.Test range: DN15-200;
4.Clamping force: 10T;
5.Power supply: manual clamping;
6.Dimensions and weight:
control console: L715*W475*H685(mm)，43kg;
claping console: L752*W552*H706(mm)，98kg.
▍Applications

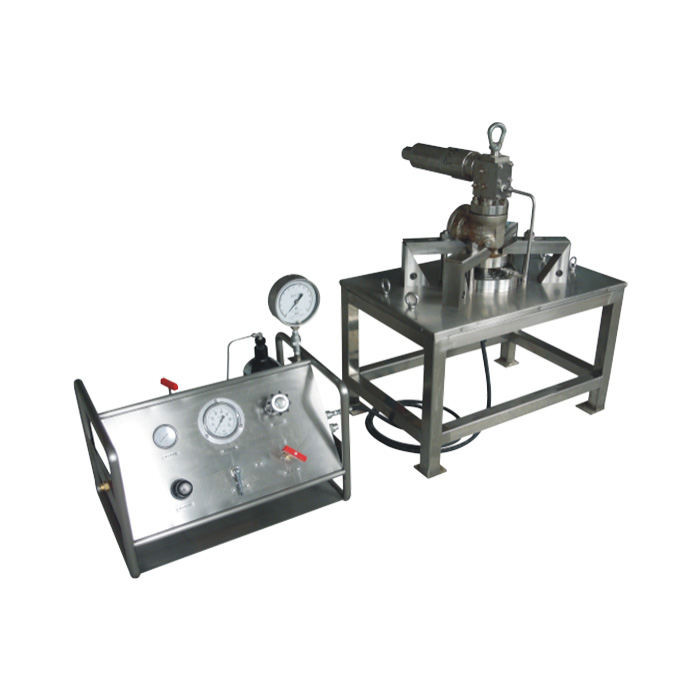

Portable HP gas test bench PTP-2
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Main components adopt European and American brands, with high reliability and less maintenance time.
2.Stainless steel frame structure is portable with small size and light weight. Clamping bench and test bench can be transported separately.
▍Parameter
1.Test medium:nitrogen, compressed air;
2.Test pressure: 0-300, 0-400, 0-680 bar;
3.Test range: DN15-200;
4.Clamping force: 10T;
5.Power supply: manual clamping;
6.Dimensions and weight:
control console: L715*W475*H685(mm)，43kg;
claping console: L752*W552*H706(mm)，98kg.
