Online PSV Tester
Outer Force: Manual Hydraulic Pump
Up-force scope: 0-50KN (optional could be 200KN)
Force sensor range: 2-5KN, 20-50KN
Working method: auto-partition accuracy: 0.4% F.S
Power: inside and outside Li-battery (Large capacity battery is an option)
Working Temperature: Operating temperature: -21 ° C – 60 ° C; storage temperature: -40 ° C – 71 ° C.
Industrial three proofing’s computer
4″ LED High brightness touch screen supported outside reading
Operating system: windows 10
Processor: Intel Atom
- Parameters
Outer Force: Manual Hydraulic Pump
Up-force scope: 0-50KN (optional could be 200KN)
Force sensor range: 2-5KN, 20-50KN
Working method: auto-partition accuracy: 0.4% F.S
Power: inside and outside Li-battery (Large capacity battery is an option)
Working Temperature: Operating temperature: -21 ° C – 60 ° C; storage temperature: -40 ° C – 71 ° C.
Industrial three proofing’s computer
4″ LED High brightness touch screen supported outside reading
Operating system: windows 10
Processor: Intel Atom
▍Applications

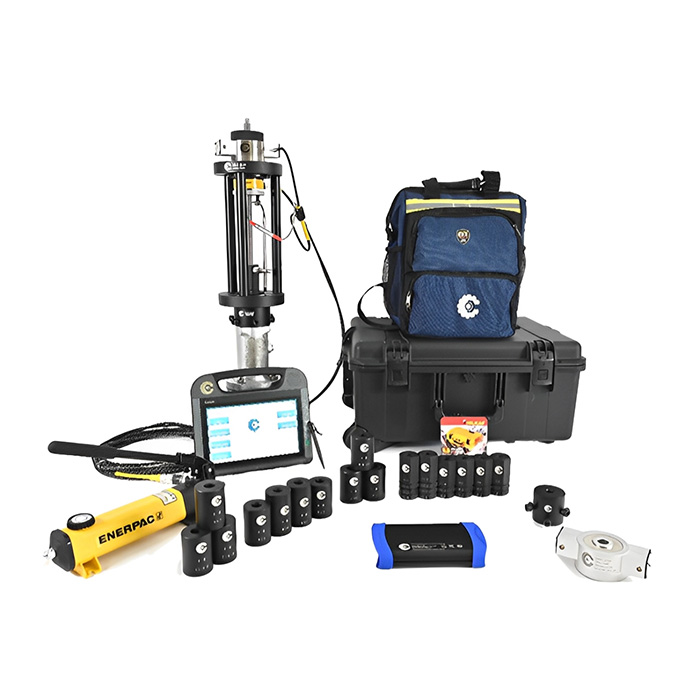

Online PSV Tester
This robust and light-weighted equipment provide precise testing of pressure safety valves on regular basis without dismantling the valves or shutting down the plant.
▍Main feature
Test accuracy & Wide test range
Supported by a 0.1% accurate measurement chain, the Pioneer I/plus+ ® has a proven total test accuracy of less than ±3% divergence from the true set pressure point. Each test is carried out with suitable measurement range and proper force capacity -from 0.1KN to 200 KN (with plus+ extension) pulling forces with standard equipment.
Smart operations
The Pioneer I/plus+® operation software is developed to be operated without any experience in online safety valve testing and a basic lab training.
Durable and convenient
Beside the durable suitcase, any technician can carry our basic set in a ONE single engineer bag to reach any valves in high level.
▍Parameter
Outer Force: Manual Hydraulic Pump
Up-force scope: 0-50KN (optional could be 200KN)
Force sensor range: 2-5KN, 20-50KN
Working method: auto-partition accuracy: 0.4% F.S
Power: inside and outside Li-battery (Large capacity battery is an option)
Working Temperature: Operating temperature: -21 ° C – 60 ° C; storage temperature: -40 ° C – 71 ° C.
Industrial three proofing’s computer
4″ LED High brightness touch screen supported outside reading
Operating system: windows 10
Processor: Intel Atom
