Oil impulse test bench HPU-1302
Main Pressure System
1.Test medium: water, oil, etc.
2.Impulse peak pressure range: 5-70MPa arbitrary setting
3.Impulse valley pressure range: below 40MPa can be set
4.Pressure measurement accuracy: ±0.5%FS
5.Pressure control accuracy: ±2%FS
6.Impulse generating device: pressurized cylinder
7.Pressure control method: electro-hydraulic servo automatic control
8.Impulse frequency: 0.5-1.3Hz
9.Impulse pressure waveform: trapezoidal wave, sine wave, triangular wave
10.Test pieces number: according to the relevant standards
- Parameters
Main Pressure System
1.Test medium: water, oil, etc.
2.Impulse peak pressure range: 5-70MPa arbitrary setting
3.Impulse valley pressure range: below 40MPa can be set
4.Pressure measurement accuracy: ±0.5%FS
5.Pressure control accuracy: ±2%FS
6.Impulse generating device: pressurized cylinder
7.Pressure control method: electro-hydraulic servo automatic control
8.Impulse frequency: 0.5-1.3Hz
9.Impulse pressure waveform: trapezoidal wave, sine wave, triangular wave
10.Test pieces number: according to the relevant standards
▍Applications

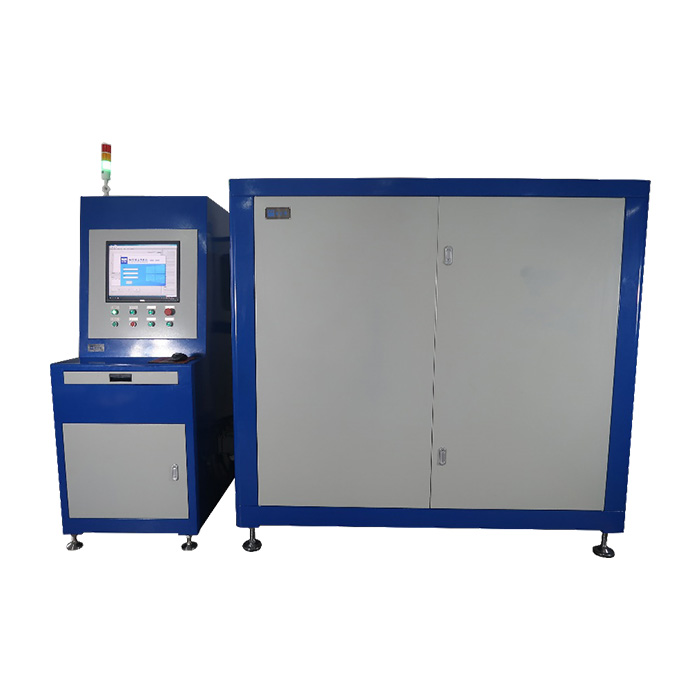

Oil impulse test bench HPU-1302
Applied to all kinds of pipeline assemblies, small cavity valves and other test pieces; gas cylinders, steel cylinders and other pressure vessels.
▍Main feature
1.Equipment Features:
TELIDE HPU-1302 Impulse test bench consists of a hydraulic control cabinet, computer monitoring integrated cabinet, and industrial chiller, based on the design standard for SAE J343, ISO 6803, ISO 6605, MIL A 5503E, PREN 2624, ARP 1383, ISO 6772 and so on. It breaks through the design concept of the existing domestic products, with beautiful appearance, ideal assembling method, compact cabinet structure, and extremely easy to install and use. TELIDE's proprietary design of high temperature and high pressure circulators for test medium meets the requirements of the standard.
2.Software functions and features:
1)Pre-set the pressure test process before the equipment operation, including peak and valley pressure, impulse number, medium temperature, waveform and other related parameters;
2)Adoption of high-frequency data acquisition card and strong anti-interference control and computer registration system;
3)Display pressure curve and temperature curve in real time. Test data is saved in Excel file, convenient to access and store. Generate report of time pressure, temperature and time curve. Equipment, interface, parameters can be changed according to user needs. Pressure unit can be converted timely: MPa-bar-psi.
3.Safety Features:
Emergency stop function; liquid level alarm and over-temperature alarm stop function; open door and stop equipment during test.
▍Parameter
Main Pressure System
1.Test medium: water, oil, etc.
2.Impulse peak pressure range: 5-70MPa arbitrary setting
3.Impulse valley pressure range: below 40MPa can be set
4.Pressure measurement accuracy: ±0.5%FS
5.Pressure control accuracy: ±2%FS
6.Impulse generating device: pressurized cylinder
7.Pressure control method: electro-hydraulic servo automatic control
8.Impulse frequency: 0.5-1.3Hz
9.Impulse pressure waveform: trapezoidal wave, sine wave, triangular wave
10.Test pieces number: according to the relevant standards
11.Test piece expansion: ≤0.5L
12.Impulse number in a single test: set arbitrarily according to the requirements of the test standard
13.Medium temperature
Water: +10℃~+80℃.
Oil: +10 ℃ ~ +100 ℃, higher to +150 ℃ can be provided
14.Power requirements: 40kw, AC380V/50Hz
Computerized control systems
1.Impulse waveform
(1)Adopting intelligent hydraulic servo control technology, impulse pressure waveform and impulse number are set arbitrarily within the controllable range.
(2)Pressure test waveform: trapezoidal wave, sine wave, triangular wave.
2.Pressure waveform accuracy
Pressure control accuracy can reach ±2%FS, pressure measurement accuracy can reach ±0.5%FS.
3.PC
Lower computer: controller
Upper computer: industrial control computer
4.Software
Control software: TELIDE's specialized impulse computer registration system
Report format: EXCEL
