- Parameters
1.Test medium: nitrogen;
2.Test pressure: ＜600 bar;
3.Power supply: ＜6.9 bar;
4.Dimensions and weight: L850*W650*H1100(mm),100kg.
▍Applications
Used in cable physical foaming.

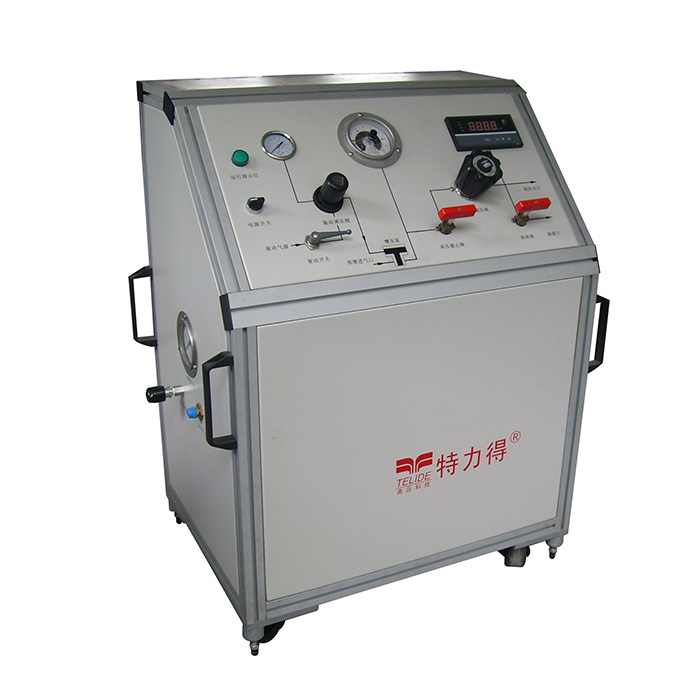

▍Main feature
1.Adopt American Sprague booster and NOVA SWISS High Pressure pipe fittings;
2.It is square aluminum alloy frame; the back panel can be opened and others can be removed;equipped foot-wheels and adjustable fixed\ bases, which looks nice and easy to be moved;
3.Output pressure can be adjusted by the high precision regulating valve on operation panel;
4.American imported double-headed booster can be equipped, which has large flow and needs less maintenance;
5.Pressure of nitrogen cylinder can be less than 0.7MPa;
6.Compressed air less than 0.7MPa is used as driven air.
▍Parameter
1.Test medium: nitrogen;
2.Test pressure: ＜600 bar;
3.Power supply: ＜6.9 bar;
4.Dimensions and weight: L850*W650*H1100(mm),100kg.
