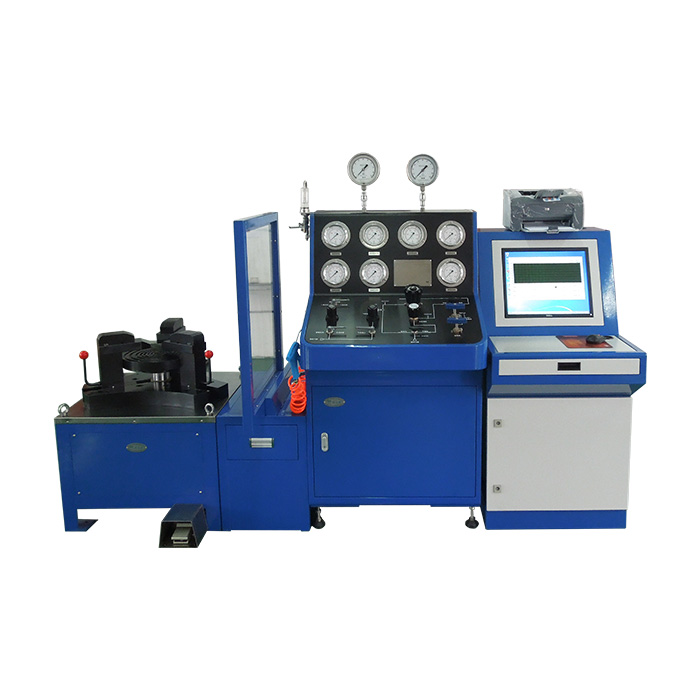

High pressure gas test bench with square clamping console TPU-3100-3
1.Test medium: air;
2.Test pressure: 680 bar;
3.Test range: DN15-300;
4.Clamping force: ＜40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm),143kg;
clamping console: L723*W723*H864(mm),368kg;
7.More: with AT-30 computer recorder.
- Parameters
1.Test medium: air;
2.Test pressure: 680 bar;
3.Test range: DN15-300;
4.Clamping force: ＜40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm),143kg;
clamping console: L723*W723*H864(mm),368kg;
7.More: with AT-30 computer recorder.
▍Applications
High pressure gas test bench with square clamping console TPU-3100-3
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Hydraulic automatic clamping, with pre-clamping, accurate clamping, fast clamping and other clamping methods, a single person can quickly complete the test;
2.Square clamping console.
▍Parameter
1.Test medium: air;
2.Test pressure: 680 bar;
3.Test range: DN15-300;
4.Clamping force: ＜40T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm),143kg;
clamping console: L723*W723*H864(mm),368kg;
7.More: with AT-30 computer recorder.
