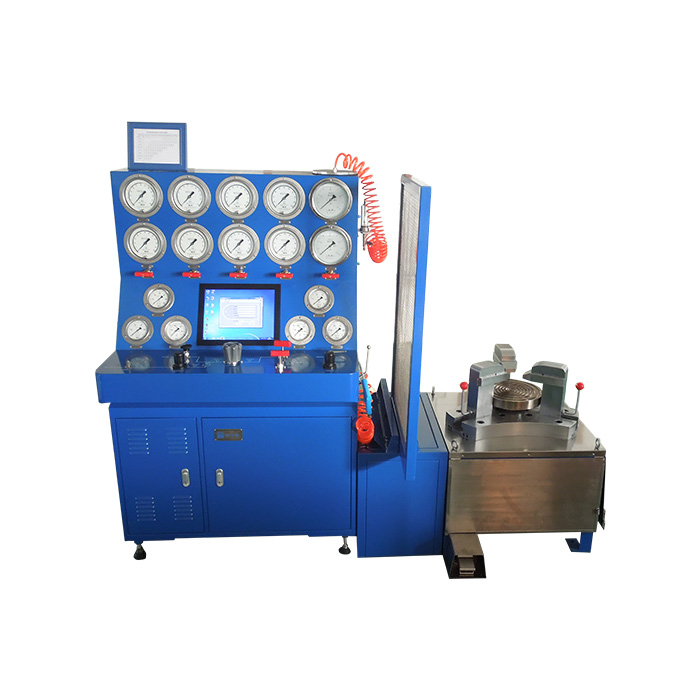

High pressure gas test bench with central computer (930bar)
1.Test medium: nitrogen, compressed air;
2.Test pressure: 930 bar;
3.Test range: DN15-400;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W1040*H1695(mm),175kg;
clamping console: L720*W720*H901(mm),460kg.
- Parameters
1.Test medium: nitrogen, compressed air;
2.Test pressure: 930 bar;
3.Test range: DN15-400;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W1040*H1695(mm),175kg;
clamping console: L720*W720*H901(mm),460kg.
▍Applications
High pressure gas test bench with central computer TPU-3100-3R
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Test pressure up to 930 bar. All pressure gauges are arranged in pairs on the control panel and are designed with overpressure protection
2.The clamping console is designed with pneumatic turning protective cover to protect the safety of human body and equipment
3.The center of control console has a 17-inch touch screen and an integrated computer recorder;
4.Hydraulic automatic clamping, with pre-clamping, accurate clamping, fast clamping and other clamping methods, a single person can quickly complete the test.
▍Parameter
1.Test medium: nitrogen, compressed air;
2.Test pressure: 930 bar;
3.Test range: DN15-400;
4.Clamping force: 40T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W1040*H1695(mm),175kg;
clamping console: L720*W720*H901(mm),460kg.
