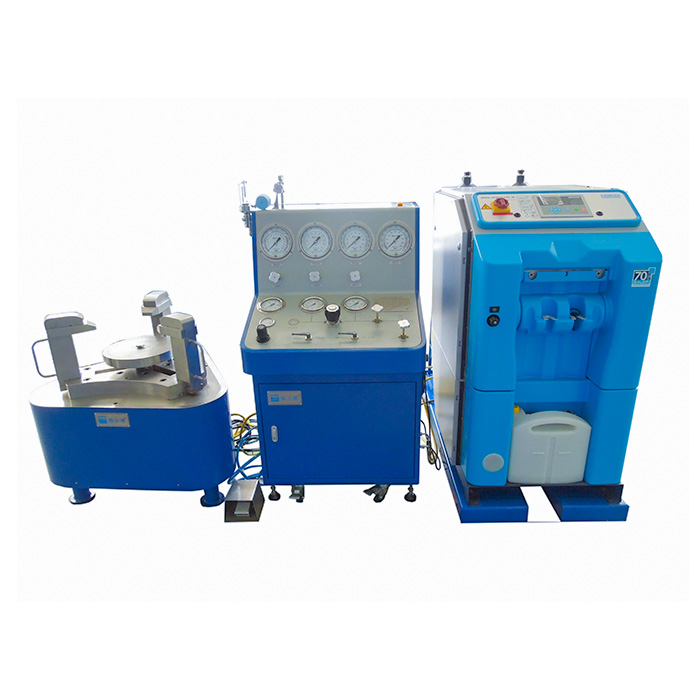

High pressure air compressor gas test bench TPU-3100-3SHAC
1.Test medium: air;
2.Test pressure: 300 bar;
3.Test range: DN15-300;
4.Clamping force: 30T;
5.Power supply: 1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L855*W720*H1420(mm),165kg;
clamping console: L975*W900*H800(mm),450kg;
air compressor: L1040*W720*H1300(mm),255kg.
- Parameters
1.Test medium: air;
2.Test pressure: 300 bar;
3.Test range: DN15-300;
4.Clamping force: 30T;
5.Power supply: 1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L855*W720*H1420(mm),165kg;
clamping console: L975*W900*H800(mm),450kg;
air compressor: L1040*W720*H1300(mm),255kg.
▍Applications
1.Suitable for set pressure test and seat tightness test for all types of SRV, clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576;
2.Suitable for testing professional equipment, small containers and valves such as shut-off valve, diaphragm valve, gate valve, check valve in nuclear power industry;
3.Also widely used in power plant, aviation, special inspection institute and petrochemical enterprises.
▍Main feature
1.The clamping system has self-locking function, which will not cause danger due to misoperation during the test and protect personnel safety;
2.Single clamping console can test safety valve in range of DN15-300,save space;
3.Triangular design of clamping console is for easy access to clamp valve and highly customizable.
▍Parameter
1.Test medium: air;
2.Test pressure: 300 bar;
3.Test range: DN15-300;
4.Clamping force: 30T;
5.Power supply: 1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L855*W720*H1420(mm),165kg;
clamping console: L975*W900*H800(mm),450kg;
air compressor: L1040*W720*H1300(mm),255kg.
