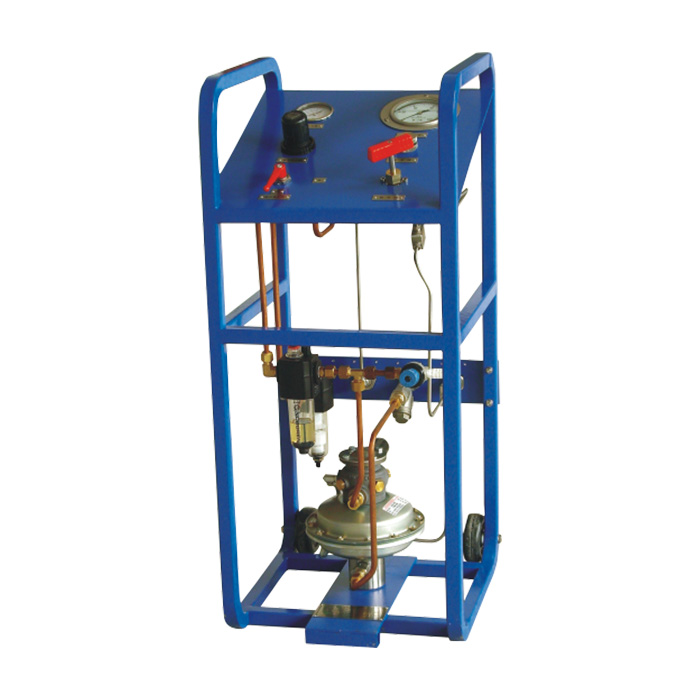

General tubular frame power unit HSU-1500-J-60
1.Test medium: water or hydraulic oil;
2.Test pressure: 420 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L400*W400*H920(mm), 26kg;
5.More: Other pump ratio selection, stainless steel frame, stainless steel liquid reservoir (10 liters) are optional.
- Parameters
1.Test medium: water or hydraulic oil;
2.Test pressure: 420 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L400*W400*H920(mm), 26kg;
5.More: Other pump ratio selection, stainless steel frame, stainless steel liquid reservoir (10 liters) are optional.
▍Applications
General tubular frame power unit HSU-1500-J-60
Suitable for hydrostatic test.
▍Main feature
1.Air-operated piston pump mounted on tubular frame with wheels for extreme portability.
2.Hydro gauges, valve, pump regulator all panel-mounted.
3.Output pressure adjusted by setting air pressure regulator to pump.
4.Pump automatically shuts off at set pressure;re-start when pressure drops.
5.All external connections are located at the rear of the unit.
6.Closed cabinet style available ,ideal for Lab /clean room.
7.Stainless steel tubular available.
▍Parameter
1.Test medium: water or hydraulic oil;
2.Test pressure: 420 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L400*W400*H920(mm), 26kg;
5.More: Other pump ratio selection, stainless steel frame, stainless steel liquid reservoir (10 liters) are optional.
