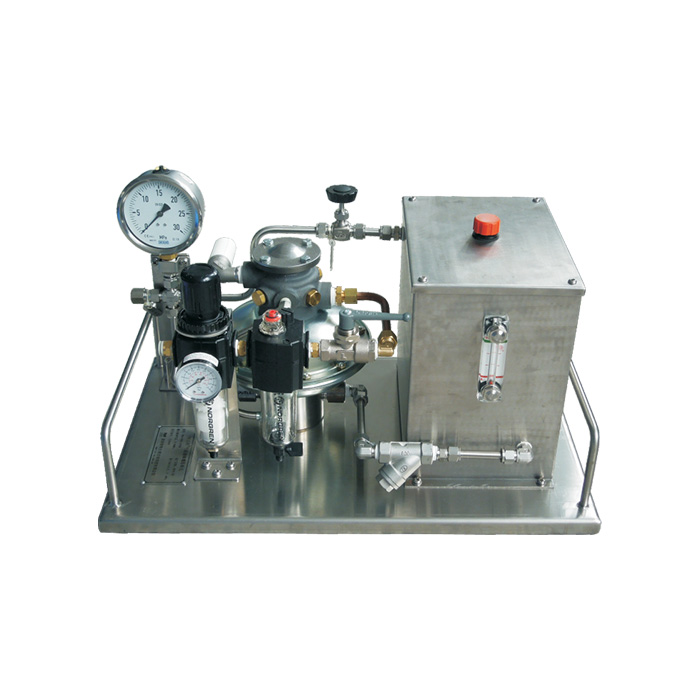

General table top power unit with reservoir HSU-1101-J-030
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum output pressure 214 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L580*W360*H360(mm), 22kg;
5.More: air driven inlet: 3/8PT+Ф10 quick connector;
high pressure outlet: 1/4″NPT internal thread.
- Parameters
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum output pressure 214 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L580*W360*H360(mm), 22kg;
5.More: air driven inlet: 3/8PT+Ф10 quick connector;
high pressure outlet: 1/4″NPT internal thread.
▍Applications
1.Suitable for hydrostatic test;
2.Suitable for tool test and pressure test to hoses, pipes, valves, fittings and other hydraulic vessels and products.
▍Main feature
1.Compact power unit has same components as HSU-1100;
2.With the addition of a three gallon(11.4 liters) stainless steel reservoir;
3.Reservoir is fitted with filter-breather-screen assembly, suction filter inline to pump, and sight glass to show liquid fill point;
4.Designed to improve suction capability of higher ratio pumps and eliminate dry start-ups.
▍Parameter
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum output pressure 214 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L580*W360*H360(mm), 22kg;
5.More: air driven inlet: 3/8PT+Ф10 quick connector;
high pressure outlet: 1/4″NPT internal thread.
