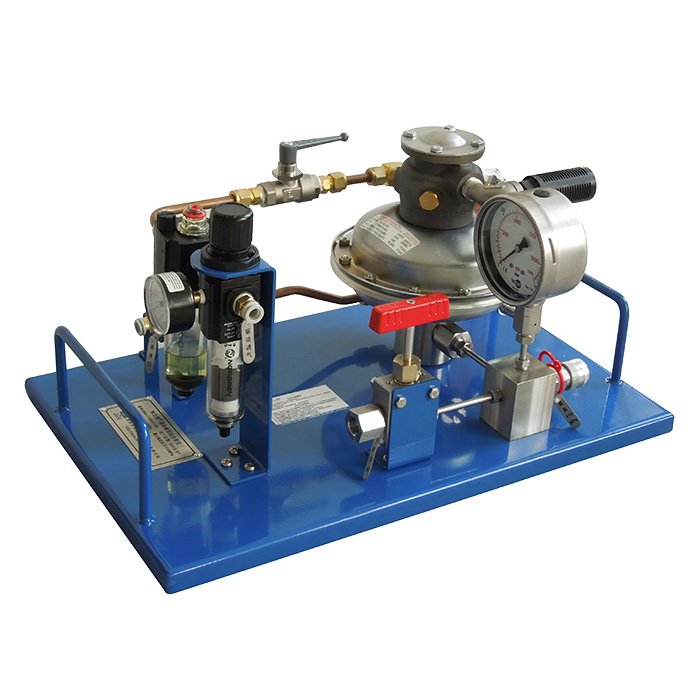

General table top power unit HSU-1100-J-150
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum driven pressure 6.9 bar, output pressure 1100 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L550*W350*H280(mm), 18kg;
5.More: Other pump ratio selection are optional.
- Parameters
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum driven pressure 6.9 bar, output pressure 1100 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L550*W350*H280(mm), 18kg;
5.More: Other pump ratio selection are optional.
▍Applications
General table top power unit HSU-1100-J-150
1.Suitable for core test, tool test;
2.Suitable for tool power and pressure test to hoses, pipes, valves, fittings and other hydraulic vessels and products.
▍Main feature
1.Standard table top unit for general use.
2.Components include S-216-() pump(ten ratios), air filter, pressure regulator and lubricator, air Shut-off valve, muffler, liquid bleed valve, air pressure gauge, liquid-filled pressure gauge with quick disconnect fitting.
3.Available pressure ranges from 500 to 33,500 psi.
4.Steel powder coated (or stainless steel) base has four mounting holes.
▍Parameter
1.Test medium: water or hydraulic oil;
2.Test pressure: maximum driven pressure 6.9 bar, output pressure 1100 bar;
3.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
4.Dimensions and weight: L550*W350*H280(mm), 18kg;
5.More: Other pump ratio selection are optional.
