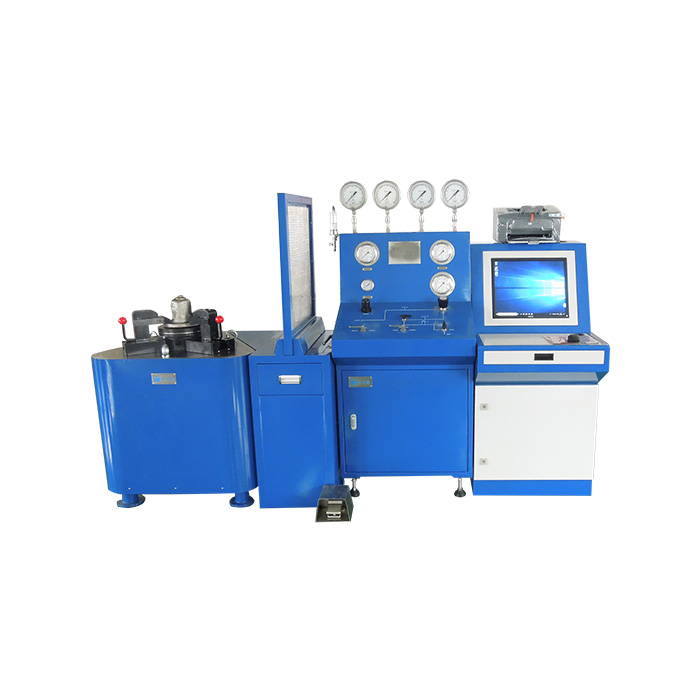

Built-in test bench
1.Test medium: nitrogen, compressed air;
2.Test pressure: ＜6 0 bar;
3.Test range: DN15-150;
4.Clamping force: 13T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L822*W749*H1020(mm),100kg;
clamping console: L700*W620*H1631(mm),295kg.
- Parameters
1.Test medium: nitrogen, compressed air;
2.Test pressure: ＜6 0 bar;
3.Test range: DN15-150;
4.Clamping force: 13T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L822*W749*H1020(mm),100kg;
clamping console: L700*W620*H1631(mm),295kg.
▍Applications
Built-in test bench TPU-3100-1N
1.Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576. international test standard-API526,API527,ANSI/API RP576.
2.Especially for built-in safety valves
▍Main feature
1.Safe and reliable hydraulic clamping provide higher clamping force;
2.Test fast by single person with fast clamping;
3.Sturdy frame, reliable components and high precision.
▍Parameter
1.Test medium: nitrogen, compressed air;
2.Test pressure: ＜6 0 bar;
3.Test range: DN15-150;
4.Clamping force: 13T;
5.Power supply: clean and dry compressed air, 1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L822*W749*H1020(mm),100kg;
clamping console: L700*W620*H1631(mm),295kg.
