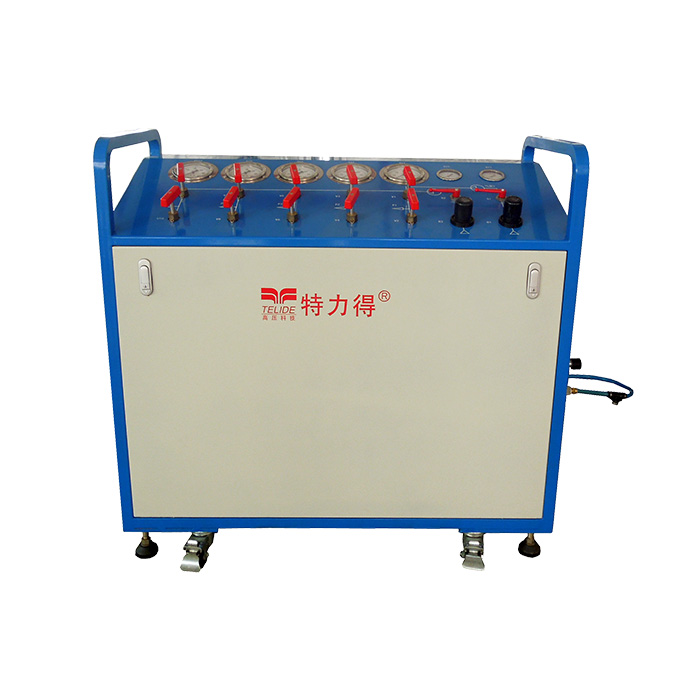

Air-driven gas charging bench HSU-1400D
1.Test medium: pure nitrogen;
2.Test pressure: ＜400 bar;
3.Power supply:
driving gas source pressure for system : ＜10 MPa.
driving pressure for the pump: ＜6.9 bar;
To ensure the pressurization speed, driving gas source supply should reach 2.5 m3/min or more.;
4.Dimensions and weight: 146.5Kg.
- Parameters
1.Test medium: pure nitrogen;
2.Test pressure: ＜400 bar;
3.Power supply:
driving gas source pressure for system : ＜10 MPa.
driving pressure for the pump: ＜6.9 bar;
To ensure the pressurization speed, driving gas source supply should reach 2.5 m3/min or more.;
4.Dimensions and weight: 146.5Kg.
▍Applications
It uses air as the driving source, and air driven pump as pressure source. The output liquid pressure and driving air pressure are proportional. By adjusting the driving air pressure, it can achieve the corresponding output air pressure. The air driven pump slows to a stop, and the output air pressure is stable at the preset pressure when the output air pressure balances to the driving air pressure . Through controlling the air input, it can control the air flow, so that to control the pressurization rate.
▍Main feature
1.Two double ended pumps in parallel; work simultaneously or separately; big flow; with 5 separate outlets;
2.Components include American Sprague Products air-driven pump and NOVA SWISS needle valves, etc.;
3.Integrated design. System integrated in a carbon steel cabinet in blue paint. With brake casters and foot support. Convenient for movement;
4.Valves, pressure gauges all panel-mounted. Screen print schematic diagram is on the panel. Convenient for operation;
5.Anti-explosion, easy operation, and controllable pressurization speed, dependable function, and wide usage.
▍Parameter
1.Test medium: pure nitrogen;
2.Test pressure: ＜400 bar;
3.Power supply:
driving gas source pressure for system : ＜10 MPa.
driving pressure for the pump: ＜6.9 bar;
To ensure the pressurization speed, driving gas source supply should reach 2.5 m3/min or more.;
4.Dimensions and weight: 146.5Kg.
