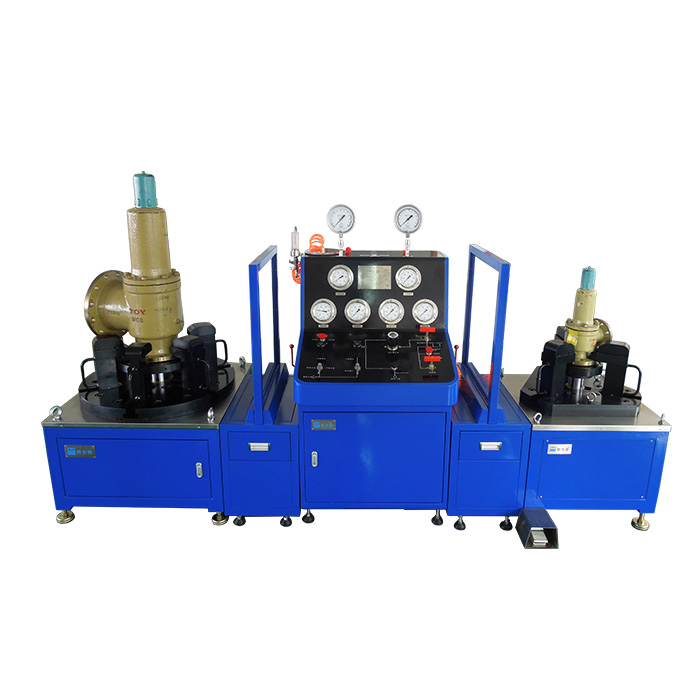

80T high pressure gas test bench with double seat
1.Test medium: nitrogen、compressed air;
2.Test pressure: 0-420 bar;
3.Test range: small clamping consoleDN15-200,large clamping consoleDN200-400;
4.Clamping force: small clamping console40T,large clamping console80T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm) ; 153kg;
large clamping console: L956*W900*H900(mm) ; 939kg;
small clamping console: L956*W700*H700(mm) ; 410kg.
- Parameters
1.Test medium: nitrogen、compressed air;
2.Test pressure: 0-420 bar;
3.Test range: small clamping consoleDN15-200,large clamping consoleDN200-400;
4.Clamping force: small clamping console40T,large clamping console80T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm) ; 153kg;
large clamping console: L956*W900*H900(mm) ; 939kg;
small clamping console: L956*W700*H700(mm) ; 410kg.
▍Applications
80T high pressure gas test bench with double seat TPU-3100-D
Suitable for set pressure test and seat tightness test for all types of SRV，clamping bench can be used for quick and safe clamping of all conceivable types of safety or relief valves according to common international test standard-API526,API527,ANSI/API RP576.
▍Main feature
1.Clamping force is up to 80T, larger clamping console has 6 claws which can clamp together or separately;
2.Hydraulic automatic clamping, with pre-clamping, accurate clamping, fast clamping and other clamping methods, a single person can quickly complete the test;
3.Double clamping console. Larger one is fit for big size safety valves while smaller one is fit for middle, samll size safety valves.
▍Parameter
1.Test medium: nitrogen、compressed air;
2.Test pressure: 0-420 bar;
3.Test range: small clamping consoleDN15-200,large clamping consoleDN200-400;
4.Clamping force: small clamping console40T,large clamping console80T;
5.Power supply: clean and dry compressed air,1.0Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console: L770*W770*H1670(mm) ; 153kg;
large clamping console: L956*W900*H900(mm) ; 939kg;
small clamping console: L956*W700*H700(mm) ; 410kg.
