▍Applications
It can be used in scientific research and other industrial fields for pressurizing and testing ultrahigh-pressure liquids such as pipes and valves.
▍Main feature

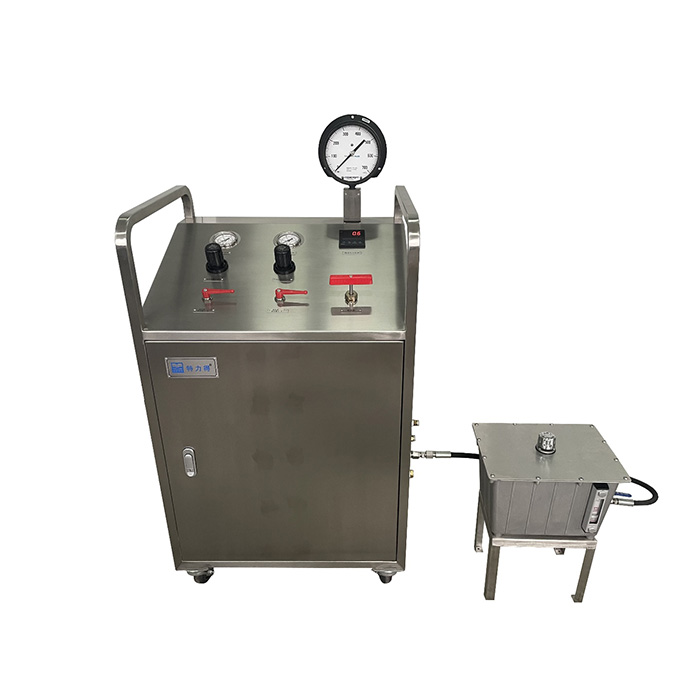

1.Composed of control console and liquid tank. The working pressure can reach up to 6800 bar, which generally meets the consistent design and manufacturing requirements of TELIDE with reasonable system, reliable components and the pursuit of first-class. The unique design ensures the long lifespan and safe use of the unit.
2.The key components such as pump and high pressure globe valve are made of world-class European and American brand products. The control console is a stainless steel fully enclosed cabinet, the valve layout on the panel is reasonable and the signage is clear.
3.The unit is equipped with digital pressure instrument and radial mechanical pressure gauge, and also equipped with high pressure sensor to transfer pressure data to the computer storage.
4.This unit is equipped with a low-pressure pump, belonging to the high and low pressure double pump system.
▍Parameter
1.Driven inlet medium: Clean, dry compressed air or depressurized nitrogen
2.Liquid inlet medium: liquid or water
3.Driven inlet pressure（bar): ＜69
4.Output hydraulic pressure（bar）: ＜6800
5.Liquid tank effective volume（L）: 10
6.Control console volume（Lmm*Wmm*Hmm): 650*520*1261
7.Control console weight（Kg）: 100
